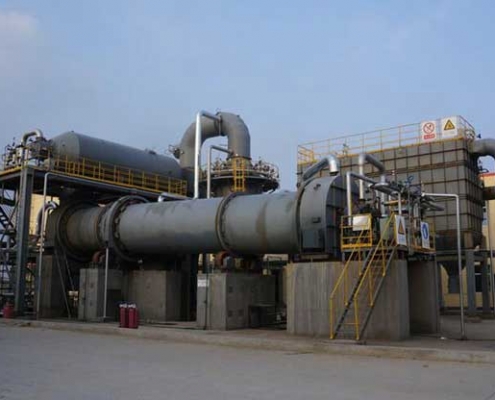

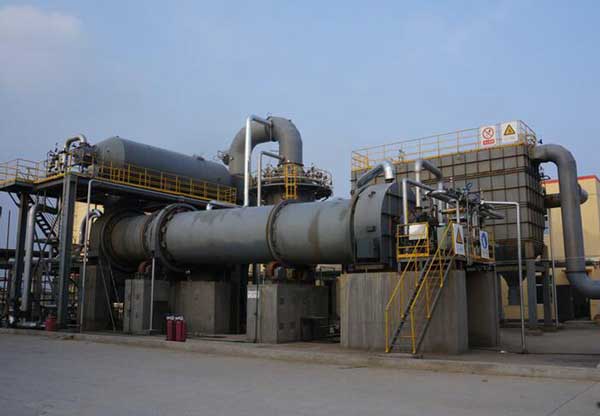

Biomass carbonization rotary kiln
General Introduction
Biomass Carbonization Rotary Kiln Furnace is the ideal machine for turnning the agricultural wastes to the useful energy. LCDRI has advanced production techniques and introduced foreign technologies to design professional Biomass Carbonization Rotary Kiln Furnace. Our professional Rotary Kiln accepts wide-ranged raw materials, almost all the biomass wastes can be carbonized, such as wood, wood chips, coconut shells, straws,sawdust, rice husk, fruit peel, etc. Through the process of carbonization, biomass wastes could turn into charcoals, electricity and biogas under high-temperature environment.
Available Agricultural Raw Materials
Agricultural production of combustible waste such as rice husk, building timber, wood powder, wood shavings, tree bark, wood trim, straw, etc.
Wide Usage of the End Products
Biomass charcoal
- Human daily life: BBQ charcoal, warmer fuel;
- Industry: can be reprocessed to activated carbon which can be used in smelting and chemical engineering;
- Agriculture: attach heavy metal and improve the soil quality;
Biogas
- Human daily life: widely used as fuel;
- Industry: used for drying system of the carbonization machine; used as industrial fuel; used to help generator to generate electricity;
- Agriculture: can be used for greenhouse heating system;
Electricity
- Human daily life: widely used in our daily life;
CONTACT US
LCDRI Biomass Carbonization Rotary Kiln Furnace Series
Fuel oil and gas series biomass carbonization furnace
-
Specification and Model
|
SN |
Specification and Model |
Production Capacity(t/h) |
Heating Method |
Heating Temperature(℃) |
Feed Requirements |
|
1 |
Φ1.5×12 m |
3-5 |
Oil+gas external heating |
550~600 |
＜10mm |
|
2 |
Φ1.8×15 m |
5~8 |
Oil+gas external heating |
550~600 |
＜10mm |
|
3 |
Φ1.8×18m |
6~10 |
Oil+gas external heating |
550~600 |
＜10mm |
|
4 |
Φ2.0×18 m |
10~15 |
Oil+gas external heating |
550~600 |
＜10mm |
|
5 |
Φ2.2×20m |
15~20 |
Oil+gas external heating |
550~600 |
＜10mm |
-
Technical Characters
- Skid-mounted module design, easy for fast installation and transportation.
- Apply for many kinds of biomass raw materials.
- Continuous and stable production, it could realize 300 days continuous operation.
- Equipment adopt double sealing with material sealing and mechanical sealing, safe and reliable.
- Adopt many kinds of temperature and pressure transmitter, PLC intelligent operation system, realize automatic and efficient control.
- Gas scrubbing and dedusting technology, high temperature vapour will be dedusted before condensing, meet environment protection requirements.
- System could operate without external heat supply during normal production. It’s automatical operation.
- Comprehensive utilization of the excess heat could be used for electricity generation during normal production.
- Heating method: adopt oil and gas double way burner for heating.
LCDRI Fuel gas series biomass carbonization furnace
- Specification and Model
|
SN |
Specification and Model |
Production Capacity(t/h) |
Heating Method |
Heating Temperature(℃) |
Feed Requirements |
|
1 |
Φ1.5×12 m |
4-6 |
Fuel gas external heating |
550~600 |
＜10mm |
|
2 |
Φ1.8×15 m |
6~8 |
Fuel gas external heating |
550~600 |
＜10mm |
|
3 |
Φ1.8×18m |
8~10 |
Fuel gas external heating |
550~600 |
＜10mm |
|
4 |
Φ2.0×18 m |
12~15 |
Fuel gas external heating |
550~600 |
＜10mm |
|
5 |
Φ2.2×20m |
15~20 |
Fuel gas external heating |
550~600 |
＜10mm |
- Technical Characters
- Skid-mounted module design, easy for fast installation and transportation.
- Apply for many kinds of biomass raw materials.
- Continuous and stable production, it could realize 300 days continuous operation.
- Equipment adopt double sealing with material sealing and mechanical sealing, safe and reliable.
- Adopt many kinds of temperatureand pressure transmitter, PLC intelligent operation system, realize automatic and efficient control.
- Gas scrubbing and dedusting technology, high temperature vapour will be dedusted before condensing, meet environment protection requirements.
- System could operate without external heat supply during normal production, automatic operation.
- Comprehensive utilization of the excess heat could be used for electricity generation during normal production.
- Heating method: adopt fuel gas burner for heating.
LCDRI Electric energy series biomass carbonization furnace
|
SN |
Specification and Model |
Production Capacity（t/h） |
Heating Method |
Heating Temperatur（℃） |
Feed Requirements |
|
1 |
Φ1.5×12 m |
3-5 |
Direct radiation heating |
450~550 |
＜10mm |
|
2 |
Φ1.8×15 m |
5~8 |
Direct radiation heating |
480~570 |
＜10mm |
|
3 |
Φ1.8×18m |
6~10 |
Direct radiation heating |
500~580 |
＜10mm |
|
4 |
Φ2.0×18 m |
10~15 |
Direct radiation heating |
550~600 |
＜10mm |
|
5 |
Φ2.2×20m |
15~20 |
Direct radiation heating |
550~600 |
＜10mm |
-
Technical Characters
- Skid-mounted module design, easy for fast installation and transportation.
- Apply for many kinds of biomass raw material carbonization.
- Continuous and stable production, it could realize 300 days continuous operation.
- Equipment adopt double sealing with material sealing and mechanical sealing, safe and reliable.
- Adopt many kinds of temperature& pressure transmitter, PLC intelligent operation system, realize automatic and efficient control.
- Gas scrubbing and dedusting technology, high temperature vapour will be dedusted before condensing, meet environment protection requirements.
- System could operate without external heat supply during normal production, automatic operation.
- Comprehensive utilization of the excess heat could be used for electricity generation during normal production.
- Heating method: adopt electrical heated rod for heating.
- Temperature control more accurate.
